全自动微生物鉴定及药敏系统

品牌:法国生物梅里埃(biomerieux)

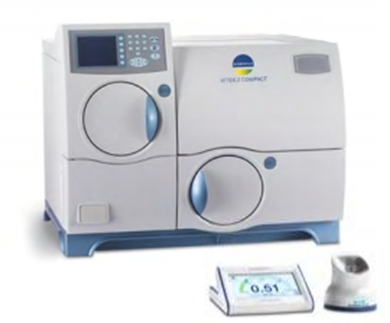

VITEK® 2 Compact is ideal for Biopharma companies which routinely perform microbial identification. The automated system guarantees excellence and optimizes your workflow.

High performance identification

With its extended database, VITEK® 2 Compact enables to identify a large range of microorganisms

  • Optimized workflow : all stages are automated, from reading to the recording of results

  • Full traceability : the risk of transcription errors is minimized

–  Bar-coded cards

–  21 CFR Part 11 Compliant

  • Productivity

–  Reduced time to result : from 2 to 18 hours

– Intuitive software : technicians require less training



用于微生物鉴定的先进比色技术

VITEK® 2 Compact 系统的高效性取决于其先进的比色技术:该系统每隔 15 分钟在三种不同波长下读取一次新一代 VITEK 测试卡(具有 64 个孔以确保准确性),测得相关数据。采用该技术可以分析更多的反应项目,提升结果的准确性。



采用 VITEK® 2 Compact 鉴定微生物的主要优势:

  • 全自动化操作,可提高实验效率和安全性

  • 当日或次日即可得出结果

  • 最高的准确度,为您带来可靠的结果

  • 符合 BAM 及 ISO 7218 标准

  • 符合 21 CFR Part 11 标准

  • 通过 AOAC OMA 验证(特指 BCL、GP 和 GN 试卡)

  • 全面的测试菜单

  • 可满足用户自行建库的补充反应文件

  • 直观的系统和软件

  • 试卡均条码标记,检测过程全程溯源

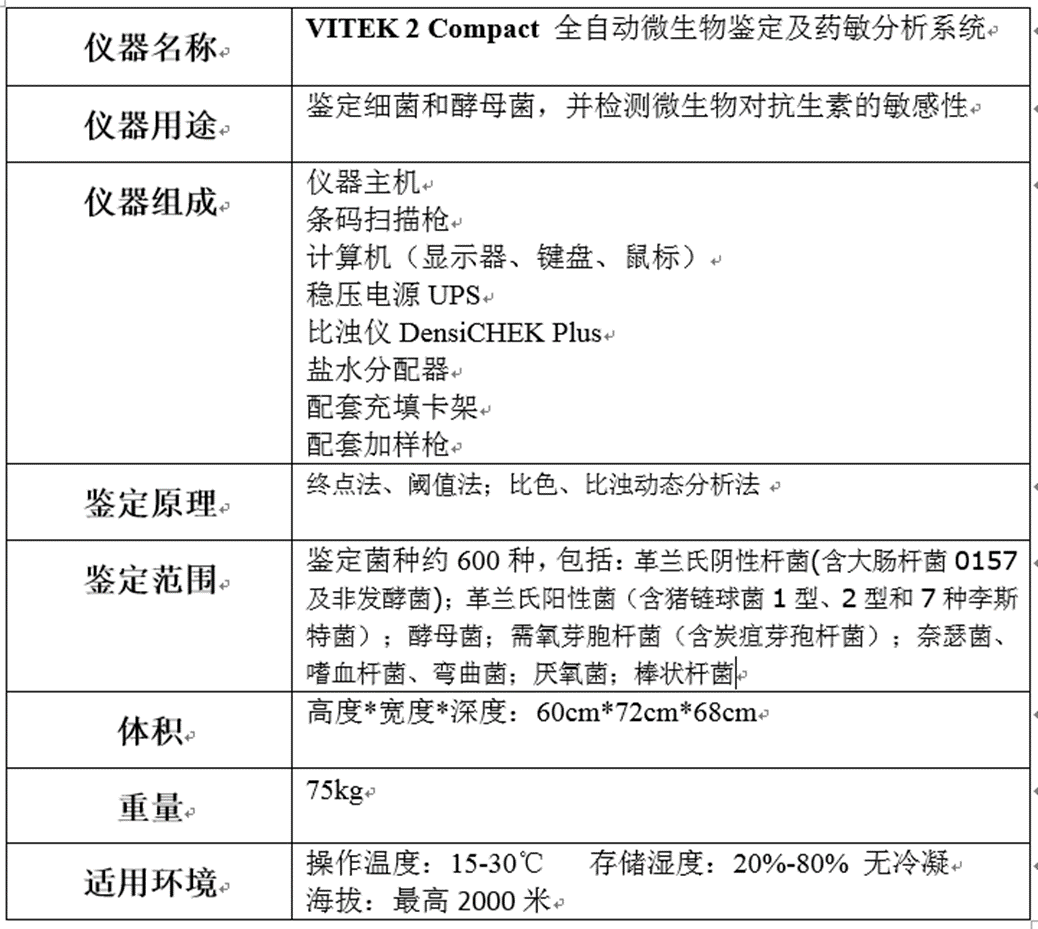

Dimensions:

Height 60 cm (23.6 in.)

Width 72 cm (28.3 in.)

Depth 68 cm (26.8 in.)



Mass:

Approximately 75 kg (165 Lb)



Electrical Characteristics:

Input voltage:100/120/220/240 VAC at 50/60 Hz

Maximum input current: 5 amps @ 120 VAC or 2.5 amps @ 240 VAC

Nominal input current: 2.5 amps @ 120 VAC or 1.25 amps @ 240 VA

Power : 300 watts nominal, 600 watts peak

Heat: 1025 BTU/HR (nominal)

Power cord: Detachable 3-wire with ground, per IEC 320



General Characteristics:

Cassette: Capacity, cards: 10 cards per cassette

Vacuum (Filler): Minimum level: 0.89 PSIA ±0.06 PSIA

Sealer: Mechanical: stub length 1.25 ± .25 mm

Incubator: Temperature: 35.5 °C ± 1 °C average



Capacity: 30 or 60 cards per Incubator (depending on configuration)
